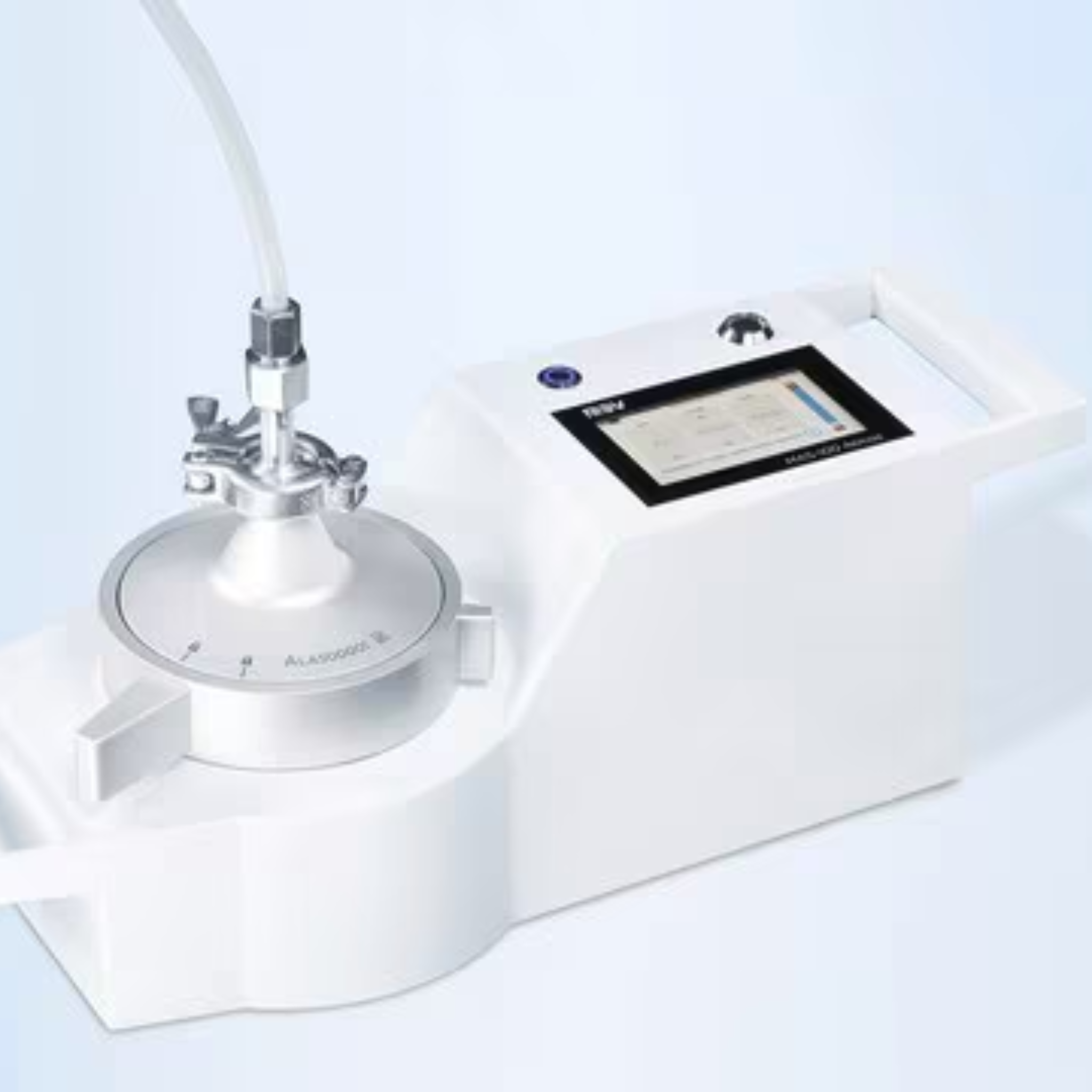

- The MAS-100 Atmos® microbial compressed gas sampler
- The instrument is designed to collect microorganisms in compressed gases by gentle but direct impaction onto agar.
- Gas types Default: Compressed air, Nitrogen (N2), carbon dioxide (CO2), Argon (Ar)
- All connections are safe and decompression is controlled by the instrument. The additional safety features of the lid prevent accidental opening while the instrument is under pressure
- Minimize handling errors Automatic detection of pressure and a mass flow sensor ensure secure, accurate sampling of compressed gases.
• Automated flow rate regulation
• Compensation for pre-defined gas types (compressed air, N2, Ar, CO2) ensures the right amount of gas is sampled
• Automated decompression
- The software functions fulfill all requirements for data integrity according to 21 CFR Part 11.
- The impaction speed at a default flow rate of 100 LPM is identical to all other MAS-100® air samplers and provides a nominal d50 of 1.1 μm.
- Gas types Default: Compressed air, Nitrogen (N2), carbon dioxide (CO2), Argon (Ar)
- Gas flow rates:
Default: 100 L/min
Optional: 50 L/min
Optional: Automatic fallback from 100 to 50 L/min"
- Sampling volume: Configurable between 50 up to 3000 normal liter (NL)
- Standard conditions for normal liter: 20°C, 1013.25mbar(a), 0% relative humidity. Under these conditions, the air density is 1.2041 kg/m3
- Measurement precision of flow sensor: +/- 5%
- Gas pressure range (bar absolute):
- The dynamic input pressure range (line pressure during sampling) is 1.2 bar.a to 7 bar.a (17.4 psi to 101 psi). Depending on the gas type, the flow rate has to be adapted to the current pressure
- Measurement precision of pressure sensor: +/- 2%
- Standard perforated lid
- Material Anodized aluminum
- Weight 750g
- Perforated sieve geometry 300 orifices, Ø0.6mm
- Dimensions perforated sieve Ø109 x 90mm
- Physical sampling efficiency (nominal d50 value):
- Nominal d50 value of 1.1μm (e.g. according to ISO 14698/ EN 17141) at 100 L/min using the 300x0.6mm perforated lid
- Nominal d50 value of 1.6μm at 50 L/min using the 300x0.6mm perforated lid
- Nominal d50 value of 1.1 μm at 50 L/min using the 300x0.47mm perforated lid"
- Autoclaving 20 mins at 121°C, 5 mins at 134°C"

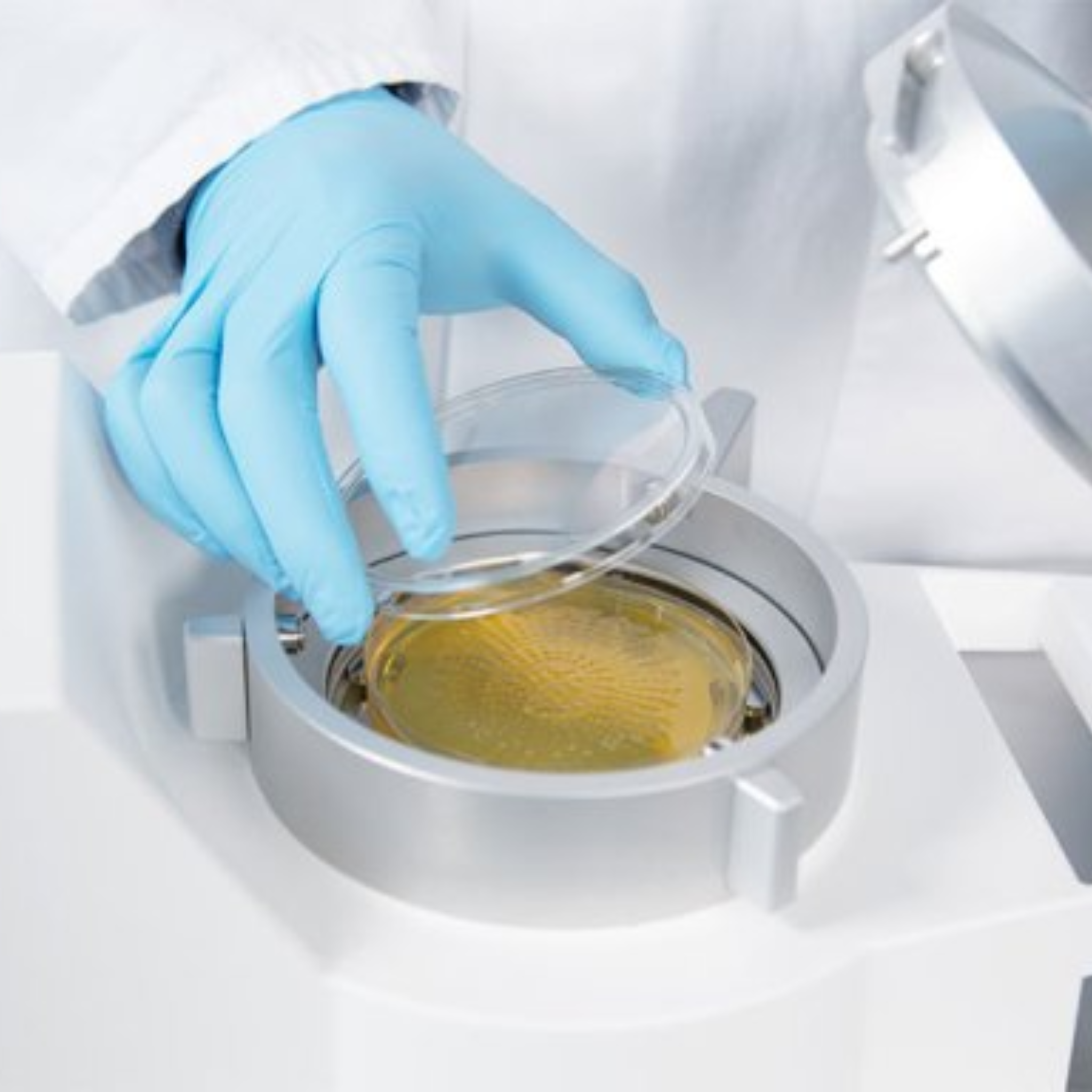

- Compatible nutrient plates Standard 90mm nutrient plates with a lower plate diameter up to 93mm, centering of the nutrient plate via the upward pointing pins on the nutrient plate holder
- Instrument filter HEPA H13 (ISO 35H) filter with a diameter of 74mm
- Length 500mm, Width 210mm, Height 180mm
- Weight (with perforated lid) 7.3kg
- Housing material Injection-molded high-performance polystyrene with acrylic plastic primer and acrylic texture varnish
- Supply data external power supply Input: 100-240V, 1A max, 50-60 Hz. Output: 5V, 2.1A max, 10.5W max
- Transient overvoltage Overvoltage category: Category II, Pollution Degree: 2
- Battery pack Chemical system: Li-ion
- Charging time Full recharge time approx. 7.5 hrs
- Weight: 300g
- Sampling time Minimum sampling time approx. 2 hrs
- Maximum sampling time approx. 5 hrs
- Depending on the chosen settings and the valve opening.
- Environmental conditions: Storage: -10 to +50 °C, Operation: +4 to +45 °C
- Relative humidity Max. 80 % RH for temperatures up to 31 °C
- Sound level for operator and bystander <80 dB at highest pressure point (7 bar.a)"
- Display Type: colored LED touchscreen
- Display diagonal: 4.3 inch
- Display resolution: 800x400"
