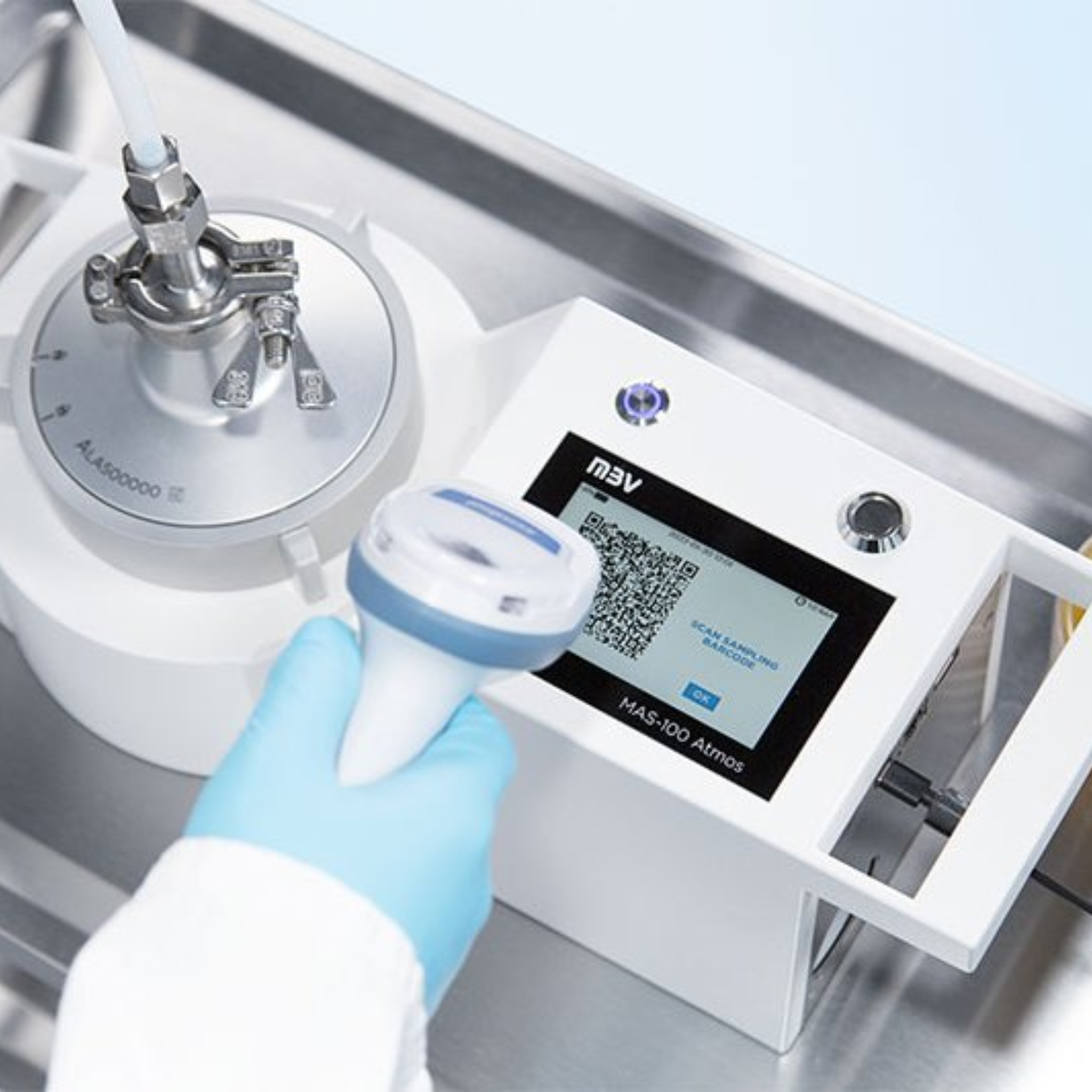

The MAS-100 Atmos compressed air microbiological sampler is designed to collect microorganisms in compressed air by gently but directly impacting them onto the agar surface.
The impact process is carried out under pressure to prevent harmful effects on the microorganisms caused by rapid decompression.
The default impact speed is 100 LPM, similar to all other MAS-100® air samplers, and it has a nominal d50 of 1.1 μm.
Automatic pressure detection and mass flow sensors ensure safe and accurate compressed air sampling: Automatic flow rate adjustment; Compensation for pre-defined gases (compressed air, N2, Ar, CO2) ensures the correct amount of gas is sampled; Automatic pressure relief.
Data integrity and connectivity: Provides different operating modes for three distinct workflows:
Freely accessible configuration (Level 0).
21 CFR Part 11 (Level 1).
Wireless options for transmitting sample data into fully computerized software programs and workflows (Level 2).
Default gases: compressed air, N2 gas, CO2 gas, Argon gas
Flow rate:
Default: 100 L/min
Option: 50 L/min
Option: Automatically reduce flow rate from 100 to 50 L/min
Sample volume: 50 - 3000 liters
Flow rate sensor accuracy: +/- 5%
Gas pressure range: 1.2 to 7 bar.a (17.4 to 101 psi). Depending on the gas type, the flow rate must be adjusted according to the current pressure
Pressure sensor accuracy: +/- 2%
Standard sampling head: 300 holes, Ø0.6mm, anodized aluminum
Physical performance (nominal d50 value): The nominal d50 value is 1.1 μm (according to ISO 14698/ EN 17141) at a flow rate of 100 L/min using the 300x0.6mm perforated head. The nominal d50 value is 1.6 μm at 50 L/min using the 300x0.6mm perforated head.
Compatible agar plates: Standard 90mm plates, plate position secured by pegs on the plate holder.
HEPA filter: H13 (ISO 35H), diameter 74 mm
Battery: Li-ion
Charging time: 7.5 hours
Minimum sampling time: approximately 2 hours
Maximum sampling time: approximately 5 hours
Display: 4.3" color touchscreen LED, 800x400 resolution
Dimensions (LxWxH): 500 x 210 x 180 mm
