Interact effortlessly – smartphone-like touchscreens allow intuitive use, even with gloves on!
• Dispensing Events is a history of all dispensing reports. You can determine water quality of an inpidual past event, assess the volume used over a specific time frame, or even allocate costs using the User ID field
• A Daily Quality Measures Report traces your water quality over time. Select a time frame to view a daily average of water quality parameters and volumes used
• The Complete History, a global archive of ALL system data, is available when a more in-depth analysis is needed. This includes water quality and volumes and any events such as alerts, setting modifications, consumables replacement and other service activitie"
e-Sure tags (based on RFID technology) are present on all consumables. These digital markings provide quality and safety assurance, as well as traceability. Thanks to e-Sure tags, consumables’ data and the events throughout their life are automatically recorded in the system memory, and a current consumable’s status can be monitored directly on the POD screen.
Our products are manufactured in an ISO 9001 and ISO 14001-registered production site and their certificates are available on demand
Ultrapure and pure water produced by the Milli-Q® IQ 7003/05/10/15 system meets or exceeds requirements
described by the organizations below: European Pharmacopeia, U.S. Pharmacopeia, Japanese Pharmacopeia, Chinese Pharmacopeia, ASTM® D1193, ISO 3696, Chinese National Standard (GB/T 6682, GB/T 33087), JIS K 0557, Clinical and Laboratory Standards Institute® (CLSI®) - Clinical Laboratory Reagent Water (CLRW)"
- The Milli-Q® IQ 7003/05/10/15 system is the first and only completely mercury-free tap-to-ultrapure water system on the market with built-in ech2o® UV lamps.
Not only are these lamps mercury free, but they are also more compact than previous UV lamps, allowing for a smaller overall system.
- We have worked hard to reduce the size of the system, tank and consumables
- Advanced RO purification, with its RO recovery loop, optimizes water recovery and reduces water consumption"
E-POD® and Q-POD® dispensers are compact, ergonomic and intuitive, making lab work more effortless and enjoyable than ever.
Monitor continuously – key quality parameters are always visible onscreen during dispensing, for full confidence in your water quality
Customize reports – easily create inpidual Dispense reports, determine average water quality over a specific time range, or even allocate costs for shared resources"
Choose the speed you need – from drop by drop to up to 2 L/min.
Precision filling – avoid intermediary containers with Assisted Dispense mode on the Q-POD® unit for a drop-by-drop finish
Feed water requirements
Feed water: Potable tap water
Pressure 1–6 bar
Temperature 5–35 °C
Conductivity <2000 μS/cm at 25 °C
Total Organic Carbon (TOC) <1 ppm
Pure, Type 2 water specifications (E-POD® dispenser with final filter)
Conductivity at 25 °C 0.2 µS/cm; typically 0.1 µS/cm
Resistivity at 25 °C >5 MΩ·cm; typically 10–15 MΩ·cm
TOC ≤30 ppb
Production flow rate: 3 L/h
Bacteria <0.01 CFU/mL (With Millipak® or Biopak® filter when installed and used in a laminar flow hood)
Particulates: No particles with size >0.22 µm (With Millipak® or Millipak® Gold filter)
Pyrogens (endotoxins) <0.001 EU/mL (With Biopak® polisher when installed and used in a laminar flow hood)
RNases <1 pg/mL (With Biopak® polisher)
DNases <5 pg/mL (With Biopak® polisher)
Proteases <0.15 µg/mL (With Biopak® polisher)
Flow rate Up to 2 L/min
Ultrapure, Type 1 water specifications (from Q-POD® dispenser)
Conductivity at 25 °C 0.055 μS/cm
Resistivity at 25 °C 18.2 MΩ·cm
TOC ≤2 ppb (µg/L); typically ≤5 ppb
Bacteria <0.01 CFU/mL (With Millipak® or Biopak® filter when installed and used in a laminar flow hood.)
Particles: No particles with size >0.22 µm (With Millipak® or Millipak® Gold filter.)
Pyrogens (endotoxins) <0.001 EU/mL
RNases <1 pg/mL (With Biopak® polisher)
DNases <5 pg/mL (With Biopak® polisher)
Proteases <0.15 µg/mL (With Biopak® polisher)
Flow rate Up to 2 L/min

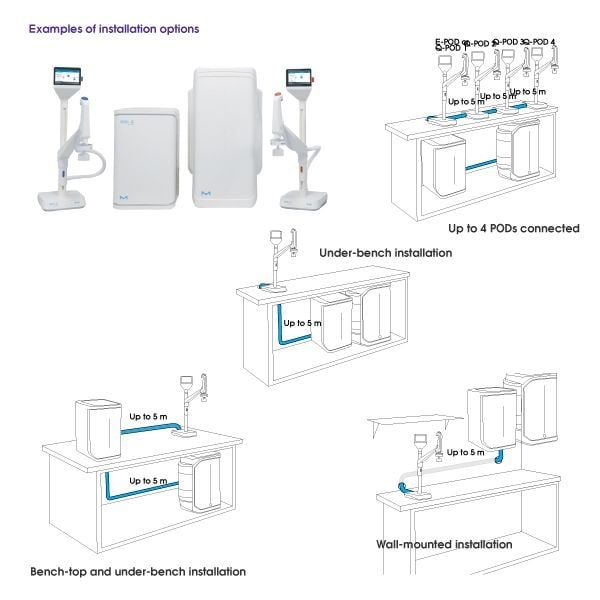

Distance from purification unit to POD dispenser: Maximum 5 m
Distance between two POD dispensers (Maximum 4 dispensers connected in series): Maximum 5 m
Capacitive touchscreen Size: 5 in; Resolution: 800 x 480
USB port USB 2.0 Highspeed standard
Operating weight Q-POD®/E-POD® 5.5 kg
Purification unit: 26.0 kg (Operating weight)

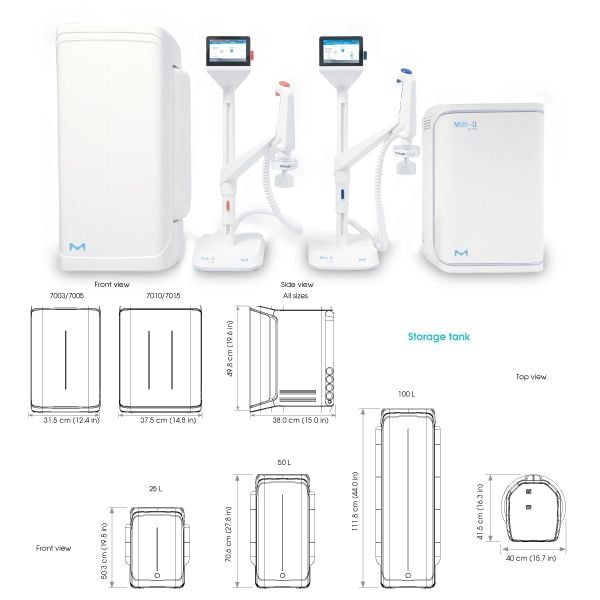

Dimensions: 49.8 x 31.5 x 38 cm
Power source voltage 100–240 V ± 10%
Power frequency 50–60 Hz ± 10%"
Operational temperature 4–40 °C
