Milliflex Oasis is a comprehensive filtration system that combines multiple features into one system.

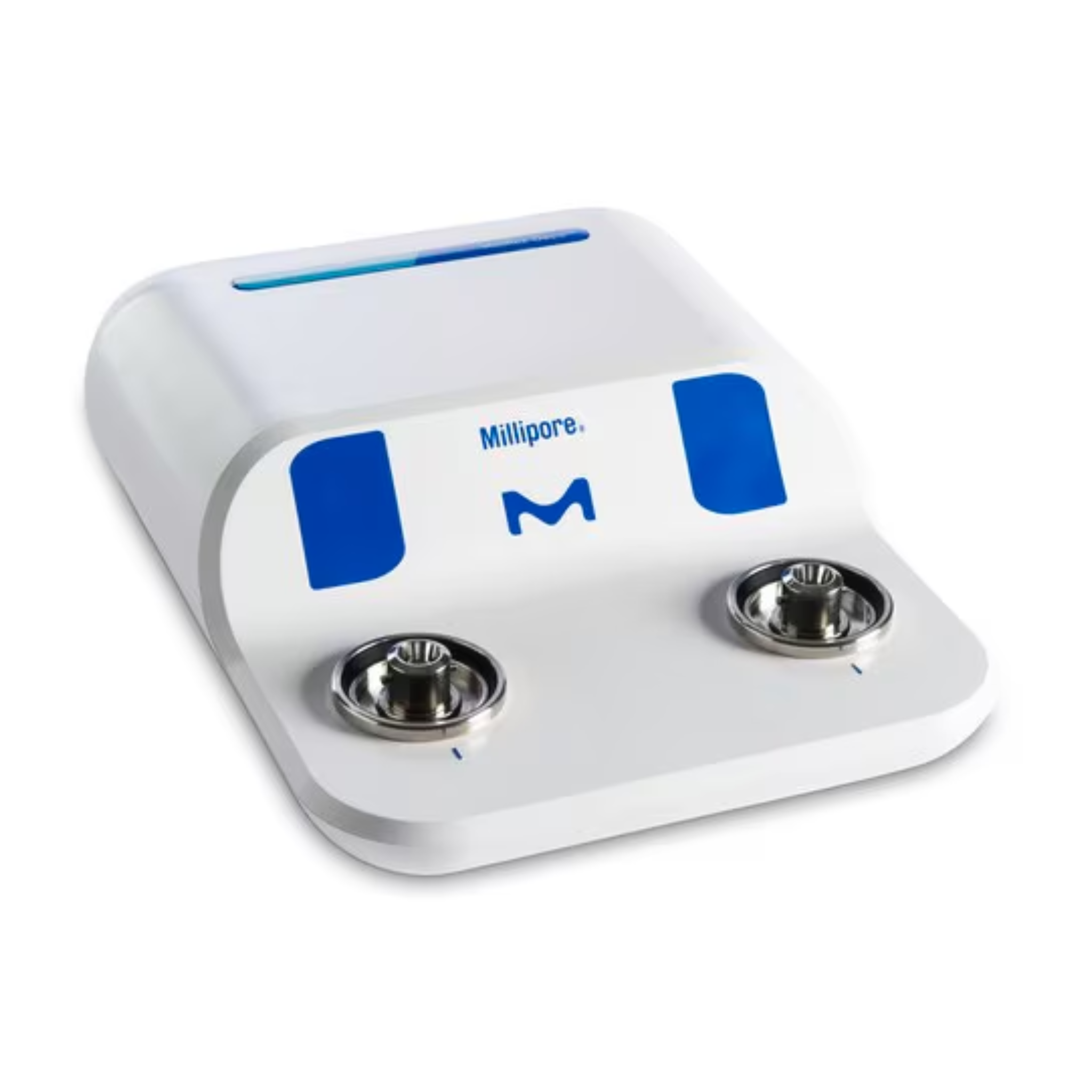

Utilizing compact principles, the Milliflex Microlite® feature makes the hardware intuitive to use and maintain. The Milliflex Oasis® pump includes a controlled vacuum source and filtration support.
This system is designed for use in biological safety cabinets/isolators, with a small footprint, light weight, and easy-to-clean surfaces.
This uniquely designed pump reduces the risk of cross-contamination and false results.
Its compactness, scalability, and ability to connect additional pumps cater to the maximum needs of users.
No hardware decontamination is required; only monthly sterilization is needed, significantly reducing the workload in the laboratory.
• Sterile disposable filter funnels
Milliflex Oasis® funnels streamline your workflow with standardized handling steps and reduce filtration time thanks to a new drainage design.
The Milliflex Protact® feature protects your samples from secondary contamination and ensures optimal membrane contact with the culture medium for the most reliable results.
Sealed membranes ensure easy readability. Each filtration unit is 100% integrity tested to increase reliability.
• Culture media conforming to pharmacopoeial standards
Unique color coding provides control over critical processing steps throughout the workflow.

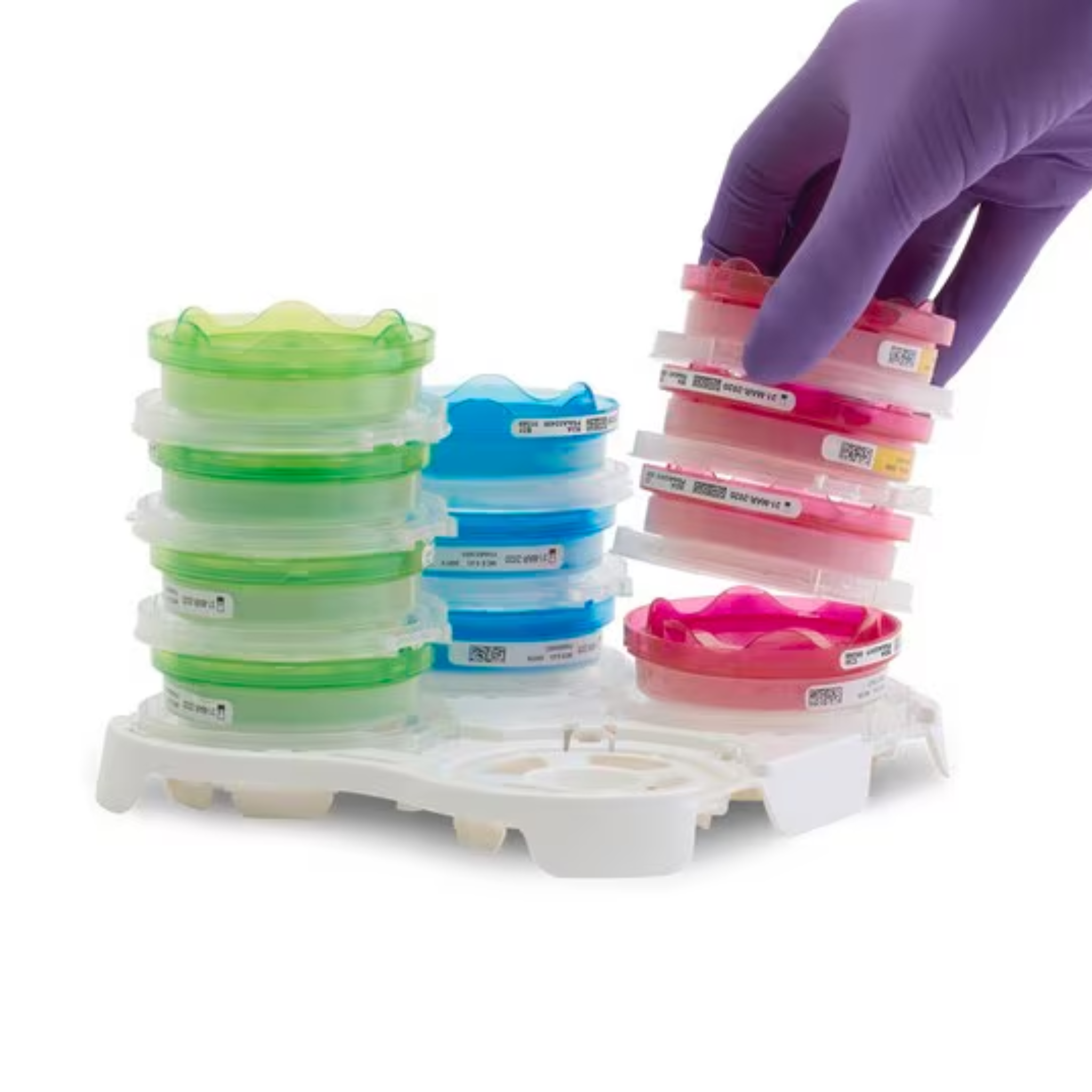

The Milliflex Rack & Stack® feature also includes locking lids for safe transport and incubation, reducing the risk of false or mixed-up results.
• Traceability
The Milliflex Trace® feature of the Milliflex Oasis® provides full traceability with removable labels, 2D barcodes that can be scanned for direct access to documentation, and unique identification for each channel and media plate.
• Regulatory compliance
All traceability features comply with USP <1117> for laboratory records and documentation, reducing preparation time for both inspections and investigations.
The reduction of secondary contamination risk complies with recommendations in USP <61> EP 2.6.12 JP 4.05 part 1.
Special PVDF membranes are used for samples containing antibiotics, complying with USP <1227>.
The 250 mL funnel is designed for WFI (Water for Injection) samples, compliant with EP 0169 and USP <1231>.
Materials:
Main body: Acrylonitrile styrene acrylate and polycarbonate, compatible with standard UV sterilization.
Filtration head: Stainless steel, silicone, rubber gasket, can be autoclaved at 121°C for 15 minutes or at 134°C for 5 minutes.
Machine Specifications:
Height: 90 mm (3.5 in.)
Width: 230 mm (9.0 in.)
Length: 310 mm (12.2 in.)
Filter head holder: 70 mm (2.8 in.)
Weight of filter head: 3.4 kg (7.5 lb)
Power supply: 100 - 240 V, 50/60 Hz – only one power unit required for all three pump units.
Filter Funnel Specifications:
Material of funnel, holder, and cap: Styrene butadiene copolymer (SBC)
Membrane ring material: Polyethylene (PE)
Height of 100 mL funnel: 57 mm (2.2 in.)
Height of 250 mL funnel: 113 mm (5.5 in.)
Diameter: 82 mm (3.2 in.)
2D barcode identification: Datamatrix, readable with standard 2D scanner.
Sterilization: E-beam irradiation.
