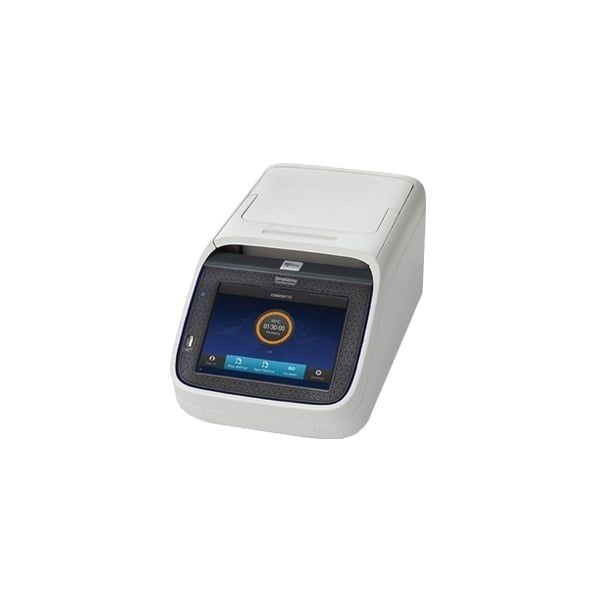

The SimpliAmp Thermal Cycler is a small, easy-to-use, and accurate thermal cycler that suits any lab's needs for everyday PCR. It is crafted with the reliable engineering and performance you’ve come to expect from Applied Biosystem instruments. It is elegantly designed to deliver quiet cycling and features an innovative, safe heated lid and a large LCD color touchscreen.
Features of the SimpliAmp Thermal Cycler include:
• Optimize PCR temperature with precision—VeriFlex blocks provide three independent temperature zones for precise temperature control

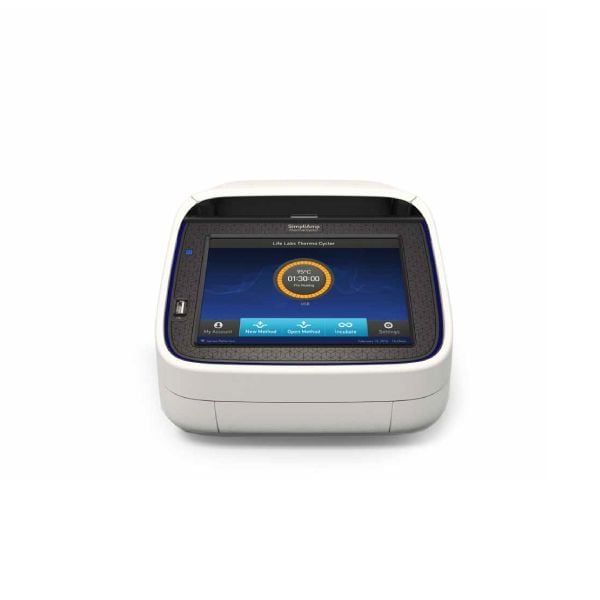

• 8-inch color touchscreen helps save time—the large, responsive, and easy-to-read interface simplifies instrument operation
• WiFi-enabled for remote monitoring—conveniently monitor with PCR Essentials mobile app

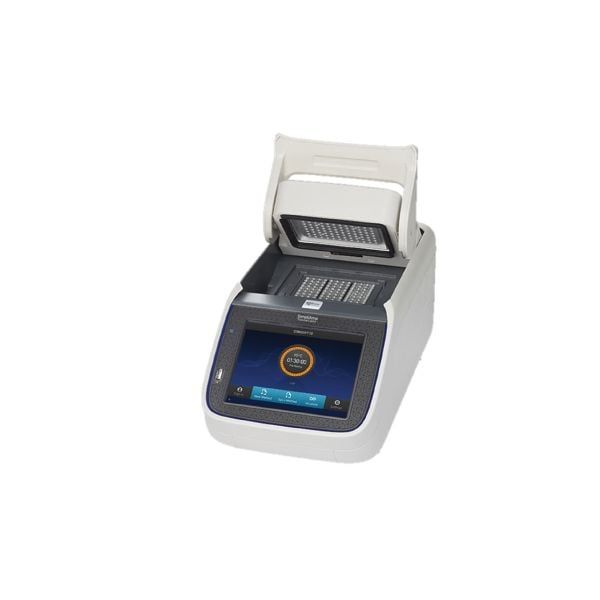

• Simple lid design protects samples—the innovative heated lid is designed to protect samples by automatically opening before cycling if not properly closed
• Ready-to-use USB drive for easy data backup—on-screen prompts simplify USB back-up
• Thermal simulation modes—available library of simulation modes allows experiments with the same ramp rates as previous or different instruments
Thermal Accuracy | ±0.25°C (35°C to 99.9°C) |
High-throughput Compatibility | Not High-throughput Compatible (Manual) |
For Use With (Equipment) | GeneAmp 2700, GeneAmp 9700, Veriti Thermal Cycler, 2720 Thermal Cycler |
Thermal Uniformity | <0.5°C (20 sec. after reaching 95°C) |
Dimensions | 18.1 x 9.5 x 8.3 in. (46 x 24 x 21 cm) |
Capacity | 96-well, 3 Zones VeriFlex |
Voltage | 100/240 V |
Display Type | 8 in. Color TFT LCD Touchscreen |
Product Type | Thermal Cycler |
Warranty | Limited Warranty |
Thermal Range | 0°C to 100°C |
User Interface | USB, Wi-Fi, Ethernet |
Wattage | 600 W |
Max. Ramp Rate | 4°C/sec. (Block), 3°C/sec. (Sample) |
No. of Programs | >1000 |
Weight | 18.3 lb. (8.3 kg) |
Block Configurations | 96-well, 0.2 mL VeriFlex Block |
Unit Size | 1 instrument |
